C.C.P. is a specialist in high-frequency connector design, offering custom connector design services for 5G applications and high-speed interfaces such as USB 3.2. Our 66 designs cover the full range of high-frequency signal transmission needs.
Design Options
Next-Generation Application Support
High-Speed Transmission Compatible
Frequency and Impedance

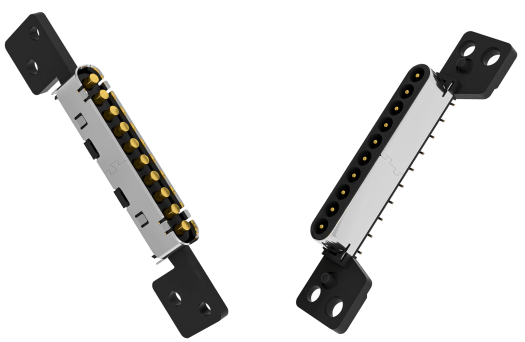

High Frequency Connector
As high-speed technologies such as 5G, WiFi 6/6E and USB 3.2 become mainstream, the high-frequency requirements placed on connectors keep getting stricter. C.C.P. high-frequency pogo pin connectors are specially designed for high-frequency signal transmission, delivering low insertion loss, low crosstalk and excellent impedance matching.
5G Applications
USB 3.2
Low Insertion Loss
Excellent Impedance Matching
Product Types
5G / WIFI 6
Optimized for mmWave and Sub-6GHz bands, suitable for 5G base station test equipment and similar uses.
USB 3.2
Optimized for USB 3.2 Gen 2 (10Gbps) high-speed transmission.
COAXIAL TYPE
The coaxial design delivers the best high-frequency shielding, suitable for RF signal transmission.
Specifications
| Specification | Value |
|---|---|
| Operating Frequency Range | By design (Sub-6GHz / mmWave) |
| Typical Applications | 5G / USB 3.2 / WiFi 6 |
| Impedance | 50Ω (customizable on request) |
| Design Options | 66 designs |
| Shielding Method | Coaxial design / ground isolation |
| Engineering Support | Frequency characterization / custom design |
Applications
5G / TELECOM
5G base station antenna arrays, small cell equipment, 5G test instruments and other communications infrastructure applications.
Sub-6GHz and mmWave support
Low insertion loss design
Suitable for base stations and test instruments
HIGH SPEED DATA
USB 3.2, Thunderbolt, DisplayPort and other high-speed applications, ensuring signal integrity.
Supports USB 3.2 Gen 2 (10Gbps)
Low crosstalk, excellent impedance matching
Suitable for both consumer and industrial equipment
C.C.P. offers over 10,000 connector options. Have a special requirement? Our engineers are ready for the challenge.
