C.C.P. spring-probe test solutions last more than 300,000 cycles, with a minimum pitch of 0.35mm. Three designs are available — single-site, dual-site and clip pogo socket — greatly reducing coplanarity error, with ceramic and aluminium fixtures rated for 30,000 cycles.
Min. Pitch
Fixture Life (cycles)
Probe Life (cycles)
Fine Pitch Connector / FPC Test
Board-to-board connections need fine-pitch spring probe sockets to reach the required accuracy. C.C.P. spring-probe test solutions last more than 300,000 cycles, and their excellent connectivity reduces the coplanarity error of conventional test pins and improves test efficiency. Single-site, dual-site and clip pogo socket designs are all available.
FPC Test
Fine Pitch Connector
PCB Board-to-Board
Design Types
SINGLE-SITE
0.4mm pitch, for single-site testing of fine pitch connectors with precise contact.
DUAL-SITE
A dual-site fixture with a fine pitch connector DUT, improving test throughput.
CLIP POGO SOCKET
Clamps onto the gold fingers of a PCB or FPC — especially efficient and convenient for PCB and FPC testing.
Specifications
| Specification | Value |
|---|---|
| Min. Pitch | 0.35 mm |
| Cover / Floating Plate Material | Acrylic / Aluminum / Peek Ceramic |
| Mounting Plate Material | Aluminum |
| Service Life | 30,000 cycles |
| Max. Data Rate (PCB) | >20 GHz at -1dB insertion loss |
Applications
FPC TESTING

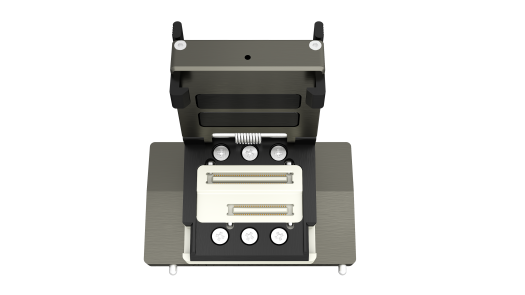

The clip pogo socket clamps the gold finger area of a PCB or FPC, making it especially efficient for PCB and FPC testing on production lines.
Clip socket grips gold fingers quickly
Min. pitch 0.35mm
30,000 cycle service life
FINE PITCH CONNECTOR
Ceramic and aluminium fixtures with pitches down to 0.3mm and a service life of 30,000 cycles — durable and reliable for connector final testing.
Board-to-board accuracy down to 0.35mm
Reduces coplanarity error and improves test efficiency
Spring probe life over 300,000 contacts
C.C.P. provides custom solutions. Have a special requirement? Our engineers are ready for your challenge.
