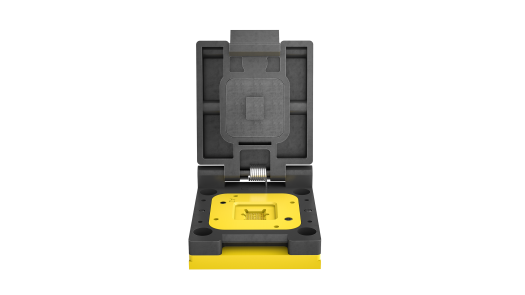

Custom burn-in test fixtures that withstand extreme temperatures up to 180°C, with a modular design that greatly shortens development time. C.C.P. proprietary WJ3 plating material runs reliably in harsh environments for 1,000 to 3,000 hours.
Max. Operating Temperature
Max. Test Duration
Min. Pitch
Burn-In Test Solutions
Burn-in testing exposes the DUT to a harsh environment: 150°C, 85% relative humidity and a continuous 1A current for up to 1,000 hours. C.C.P. uses a modular design of standard parts plus custom machined parts, which greatly shortens development time and lowers tooling cost.
BGA / CSP
QFN / QFP
Custom IC
Design Concept
STANDARD PART
Manufactured by insert molding as a general-purpose part, available quickly and at lower production cost.
MACHINING PART
CNC machined to the customer IC design, customizable for any IC size and pin configuration.
C.C.P. proprietary WJ3 plating material is extremely hard and runs reliably at 150°C for 1,000 hours — and in some cases up to 3,000 hours — providing the most dependable solution for the industry harshest burn-in environments.
Specifications
| Specification | Value |
|---|---|
| IC Size | <15×15 mm² |
| Min. Pitch | 0.3 mm |
| Shell Material | PES (black) |
| Housing Material | Ultem 2300 |
| Operating Temperature | -55°C ~ 180°C |
Applications
BURN-IN TESTING
Custom burn-in test fixtures that withstand extreme temperatures up to 180°C, suitable for life verification of all kinds of IC components. The special WJ3 plating material keeps operation stable over long runs.
Withstands operating temperatures up to 180°C
Supports 1,000 to 3,000 hours of continuous testing
Fixtures customized to the IC design, shortening development time
IC RELIABILITY
For reliability verification of BGA, QFN, CSP and other packages. The special plating material maintains stable electrical performance even in harsh environments.
Supports BGA, QFN, CSP and other packages
High-hardness WJ3 plating resists wear
Modular design lowers tooling cost and development time
C.C.P. provides custom solutions. Have a special requirement? Our engineers are ready for your challenge.
